Rota Plane 18

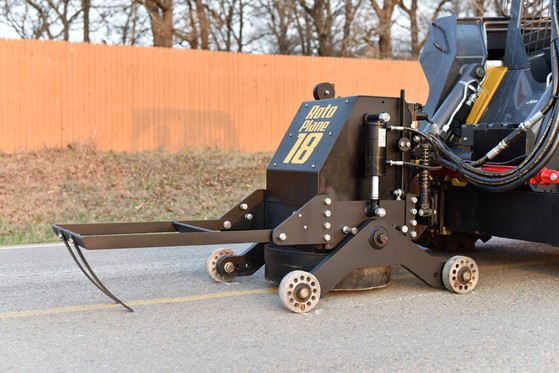

The next "new" thing from Dickson Industries, a vertical shaft grinder.  Capable of many functions including highway line removal, trip hazard removal, floor polishing, and bump grinding just to name a few.  Available in several sizes, this unit  can be powered by a high-flow skid steer loader or one of several Road Pro series grinders from Dickson Industries.  What makes the the Rota Plane so unique is the depth control system, each side can be controlled independently via hydraulic cylinders mounted directly to either heat treated, hardened skids or one of two glide wheel arrangements.  With both side-to-side pivot and front-to-rear pivot, the Rota Plane maintains perfect contact with the surface.

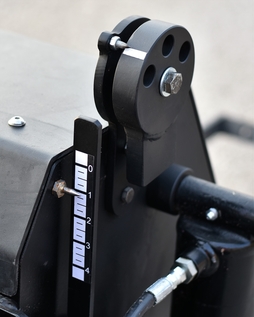

Individual depth control with easy to read indicators.  Also shown is the leveling gauge that allows the operator to level or tilt the head from the operators station. (right side)

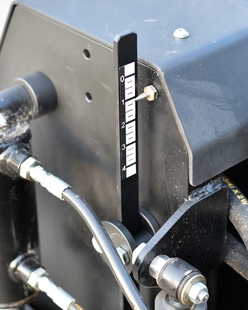

Left side depth indicator.

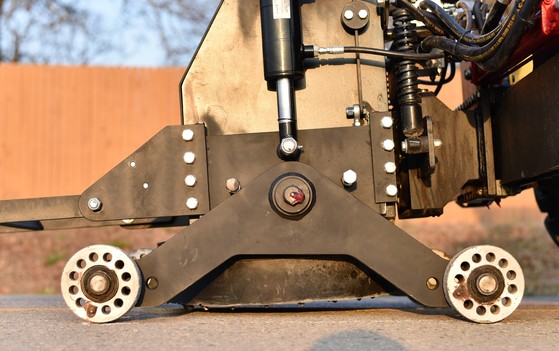

A walking beam axle ensures high spots can be ground to a smooth level.  Glide wheels feature press-in cartridge bearings with easy to reach grease fittings.

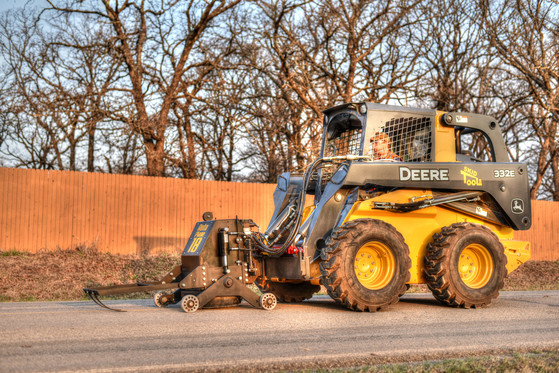

Available for both skid steers and Road Pro HD universal tractor units.
Other sizes coming soon.  Check this page often for the newest updates.
