Poly Crystalline Diamonds

Bits and Drums

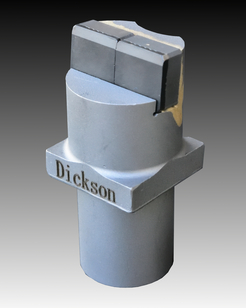

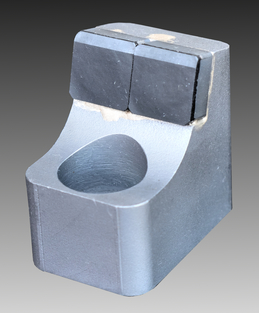

Poly Crystalline Diamonds, PCDs; are the newest technology in the surface prep industry. With the potential of much longer service life, PCDs are quickly becoming the standard for line removal, slot cutting, and plunge cuts. Longer service life means less time changing bits and more time grinding. No rods to break and no end plates or center support plates to wear out. The higher initial cost is quickly offset by the longer service life and labor savings. Contact us to see if PCD bits are right for your operation.

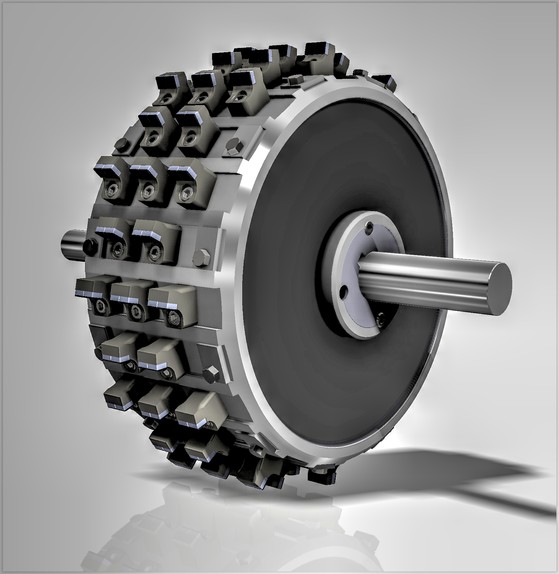

DICKSON PCD
DRUM ASSEMBLY

9" cut path
Reduces to 5", 6", 7", or 8"
Fits most Road Pro models
DICKSON PCD
DRUM ASSEMBLY

7" cut path
Reduces to 4", 5", 6", or 7"
Fits most Road Pro models
DICKSON PCD
DRUM ASSEMBLY

12" cut path
Fits most Road Pro models

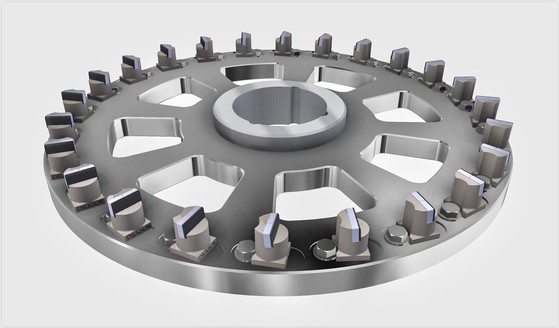

DICKSON PCD
DISC ASSEMBLY

12", 15", or 18" cut path
Fits ROTA PLANE

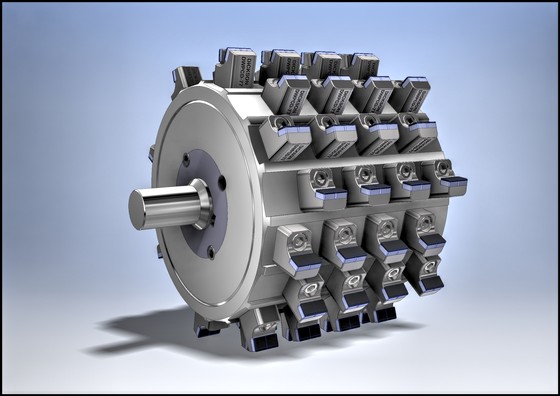

DICKSON PCD DRUM FOR MRL AND ARROW TRUCK GRINDERS

14 rows, 56 bits
10 1/2" OD, 8" wide maximum cut path
4", 5", 6", 7" reduced width

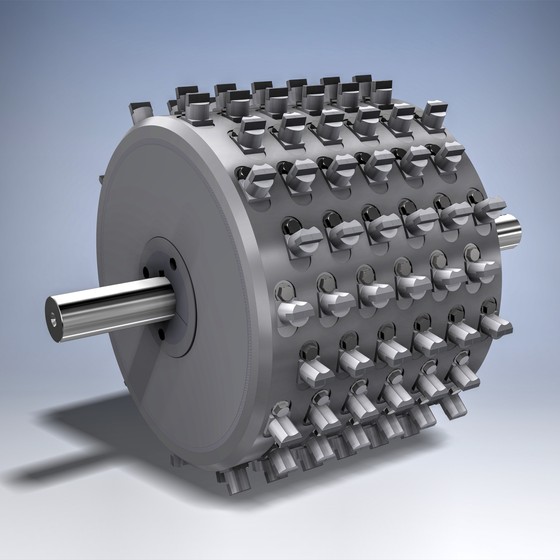

DICKSON PCD DRUM FOR MRL AND ARROW TRUCK GRINDERS

16 rows, 64 bits
12" OD, 8" wide maximum cut path
4", 5", 6", 7" reduced width

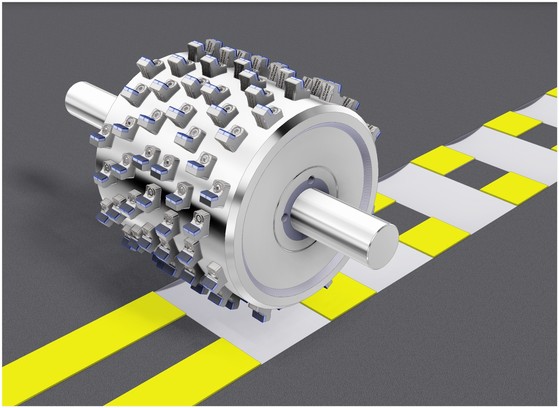

DICKSON PCD DRUM FOR RUMBLE STRIP MILLING MACHINES

Fits Dickson Industries Rumbler
16" maximum width
Adjust width by simply removing bits from the outside edges
For asphalt only
